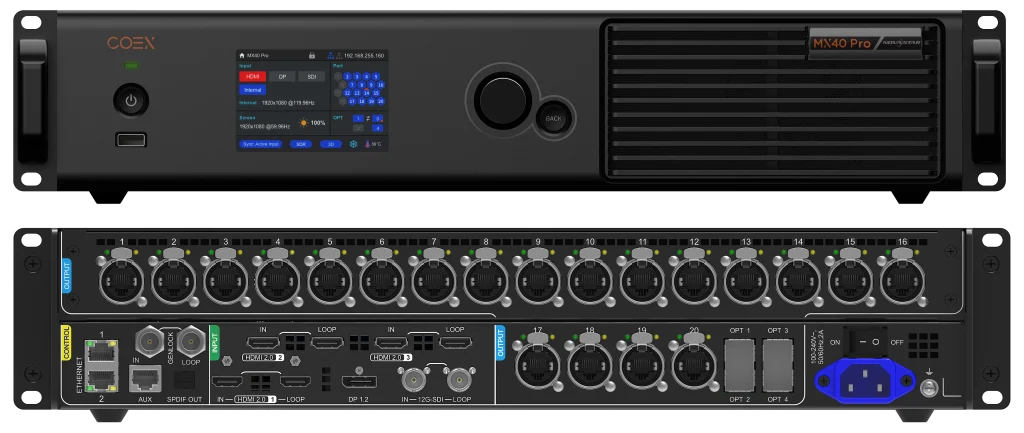

NovaStar MX40 Pro
The NovaStar MX40 Pro is the flagship COEX-series 4K LED display controller: 9 million pixels across 20x Gigabit Ethernet, 4x Fiber, with Image Booster 2.0 and Dynamic Booster for camera-facing walls.
The MX40 Pro, hailing from the advanced COEX series, is our latest premier 4K LED display controller. Equipped with a plethora of video input options and designed to synchronize seamlessly with our new VMP (Vision Management Platform) software, the MX40 Pro promises a superior operational and control experience.
Dual boosters for exceptional image display
Leveraging the capabilities of Image Booster 2.0 and Dynamic Booster, we’ve achieved significant enhancements in grayscale, color accuracy, and contrast ratio.
Image Booster
Dynamic Booster
Fine grayscale
With 22bit+ precision, we’ve magnified grayscale by 64-fold, achieving 0.002 nits of meticulous control, resulting in an exceptionally lifelike and detailed image presentation.
More realistic color
Complete automation in color standardization, calibration, and verification allows for adaptive color gamut adjustments, achieving a color accuracy of △E<2.
Higher contrast ratio
By optimizing the details in both bright and dark content to ideal levels, an SDR source can emulate an HDR effect, ensuring bright areas aren’t overexposed and shadow details remain intact.

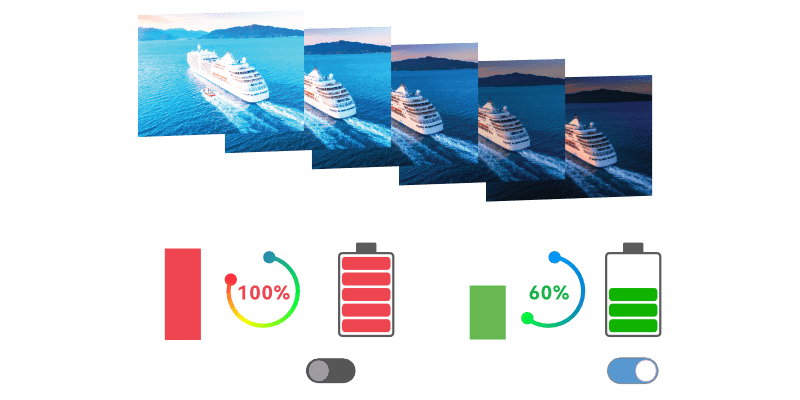

Power saving with dynamic algorithm
Through real-time analysis, brightness adjusts dynamically on a frame-by-frame basis, resulting in a 20%-40% power savings and prolonging the LED display’s lifespan.
Key Input Features:
- Versatile Video Inputs: Includes 3x HDMI 2.0 (with loop through), 1x DP 1.2, and 1x 12G SDI (with loop through), supporting 12-bit, 10-bit, and 8-bit resolutions.
- Genlock Signal: Reliable synchronization with the genlock signal input (with loop through).
Output Excellence:
- Ethernet: 20 robust Ethernet outputs supporting up to an impressive 9 million pixels.
- Optical: Four powerful 10G SFP+ outputs.
- Audio: Integrated with 1x SPDIF digital audio port.
Display Dynamics:
- Adaptive Frame Rate: Accommodates a wide spectrum of input frame rates, inclusive of decimal frame rates.
- Layering Mastery: Houses up to 4 independent 4K layers, equipped with layer priority adjustment in Z order.
Advanced Enhancements:
- Color Processing: Dive into comprehensive color adjustment functionalities such as Color Replacement, 14CH Color Correction, Color Curve, and 3D LUT.
- Dynamic Booster: Experience the marvel of frame-by-frame image analysis. This feature not only enhances display contrast and image details for a sublime viewing experience but also optimizes power consumption, ensuring longevity of your LED screen.
- Full Grayscale Calibration: Ensures uniform brightness and color intensity across varying levels of grayscale.
- Pixel Precision: In tandem with NovaStar’s premier calibration system, we offer pixel-level brightness and color calibration. Say goodbye to inconsistencies and hello to uniform brightness and color.
HDR and Latency Features:
- High Dynamic Range (HDR): Fully supports HDR10 in line with the SMPTE ST 2084 standard and HLG as per the BT.2100 standard.
- Low Latency: Achieve unmatched speed with a latency of less than 1 ms at the sending card, without compromising on loading capacity. Additionally, customize your viewing with an optional video delay of up to two frames at the sending card.
3D Experience: With specialized receiving cards, 3D emitters, and glasses, the MX40 Pro immerses viewers into a mesmerizing 3D spectacle.

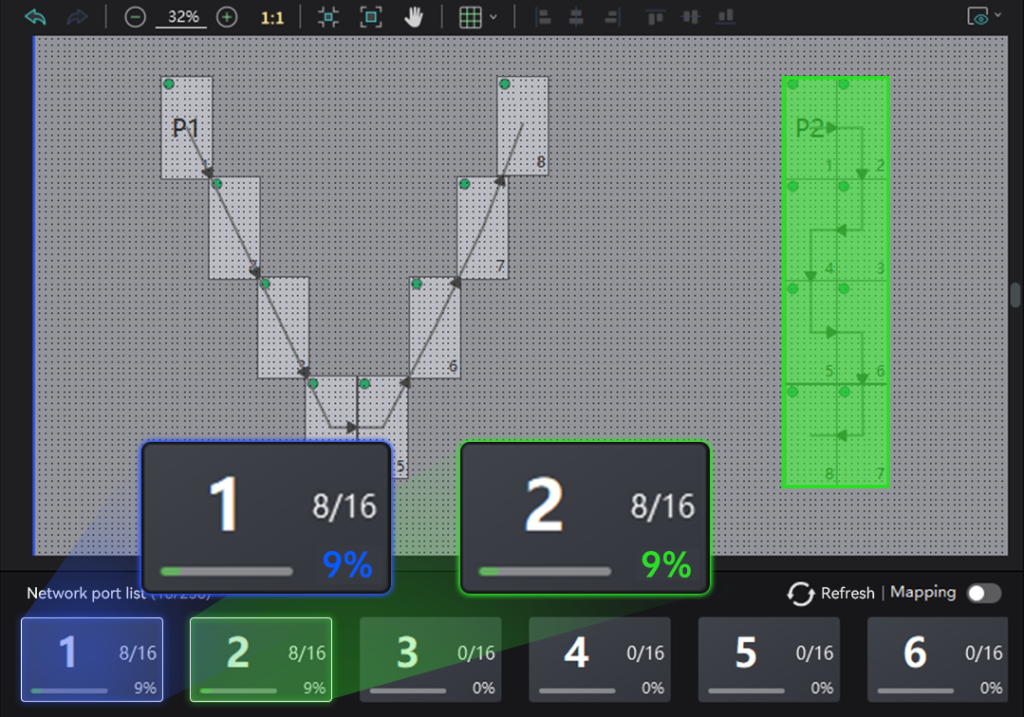

Maximize capacity without rectangular constraints!Loading capacity is now based on the actual pixel count of physical cabinets, eliminating the limitations of rectangular calculations. This allows controllers to fully optimize their capacity, avoiding wasted space from blank areas or irregular designs. Unlock your creativity—no more boundaries!
With the MX40 Pro, transcend into a realm of unparalleled visual brilliance. Experience the future of display today!
Specifications
| Pixel capacity | 9 million pixels |
|---|---|
| Outputs | 20x Gigabit Ethernet, 4x Fiber |
| Inputs | 3x HDMI 2.0, 1x DP 1.2, 1x 12G-SDI |
| Layers | 4 layers |
| Applications | Virtual Production, xR/VP, Studios, Broadcasting, E-sports, Large-Scale Rental, LED Cinema |
Highlights
- Image Booster 2.0 with 22bit+ grayscale precision (64-fold magnification, 0.002 nits control)
- Dynamic Booster with 20-40% power savings and frame-by-frame brightness optimization
- △E<2 color accuracy with automated color standardization and calibration
- SDR to HDR emulation for enhanced contrast without overexposure
- Less than 1ms latency at sending card without compromising loading capacity
- 20 Gigabit Ethernet outputs + 4x 10G SFP+ fiber outputs
- 9 million pixel capacity based on actual physical cabinet pixels
- 4 independent 4K layers with Z-order priority adjustment
